FLP Radar Level Transmitter for solids

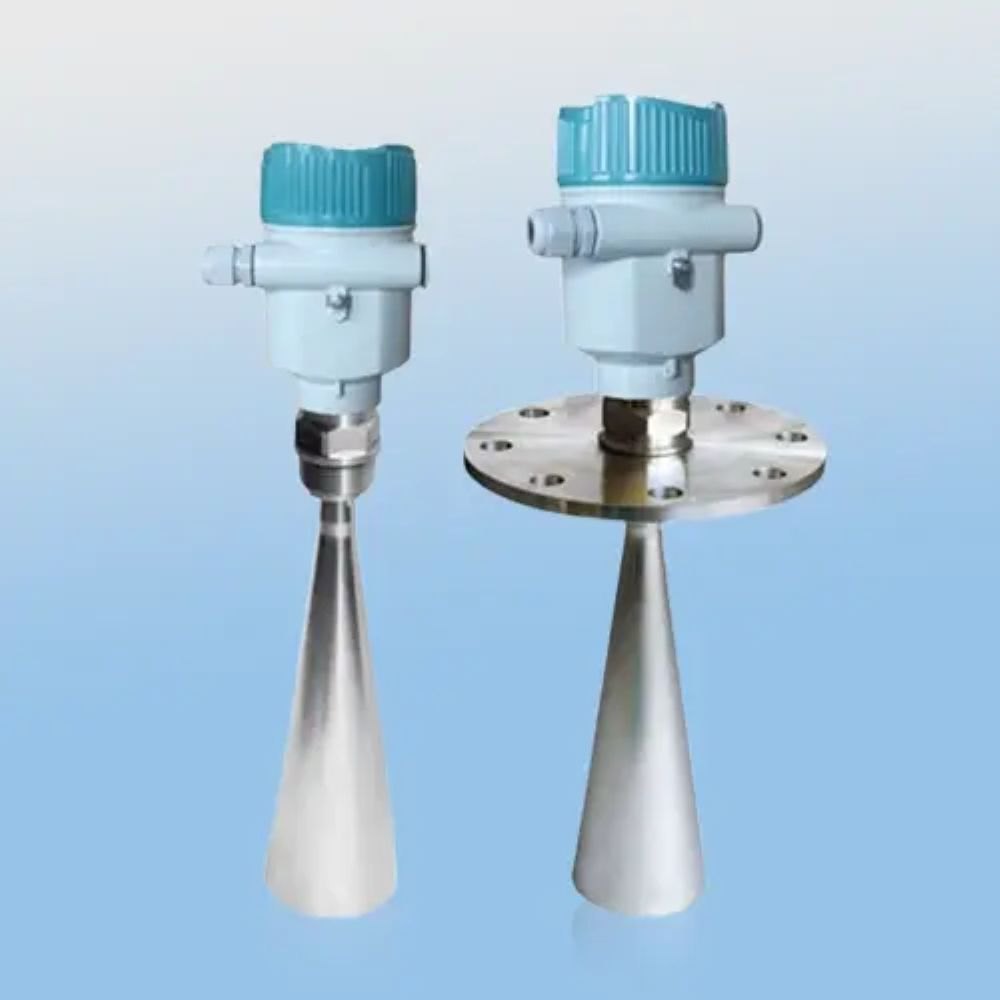

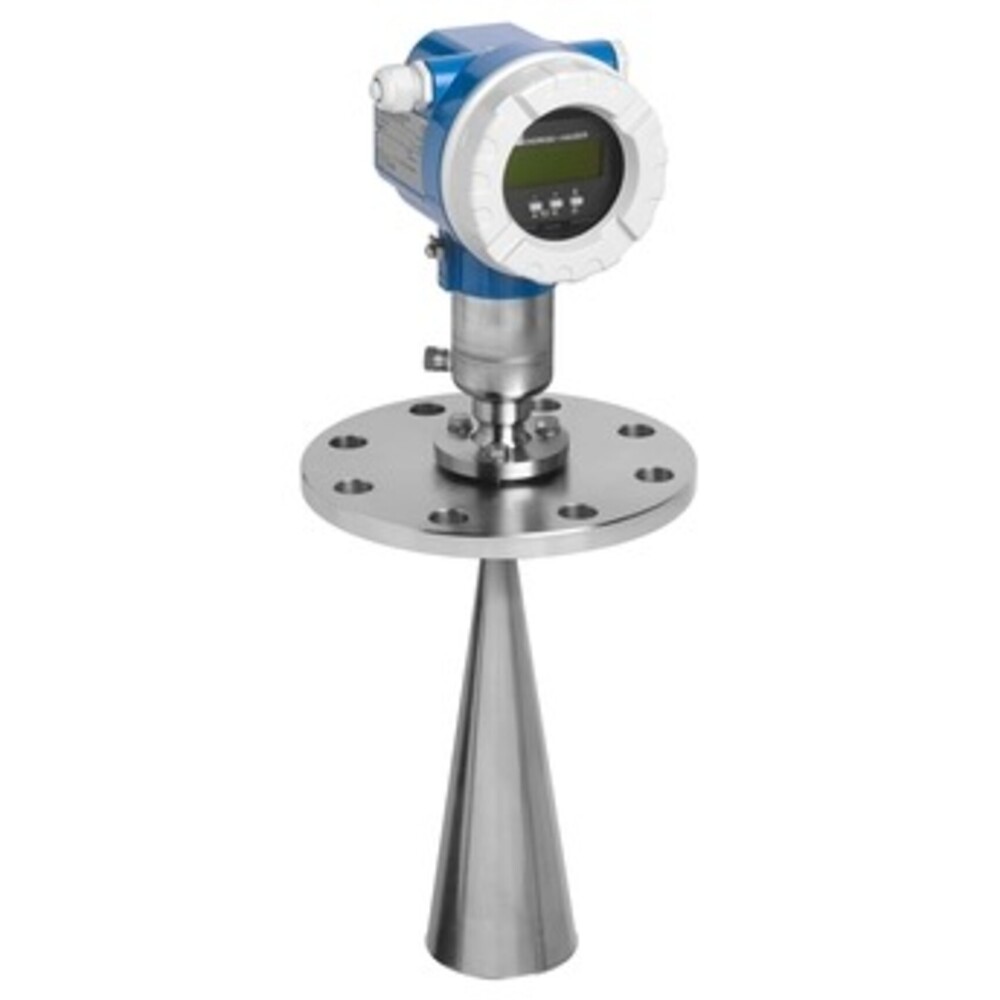

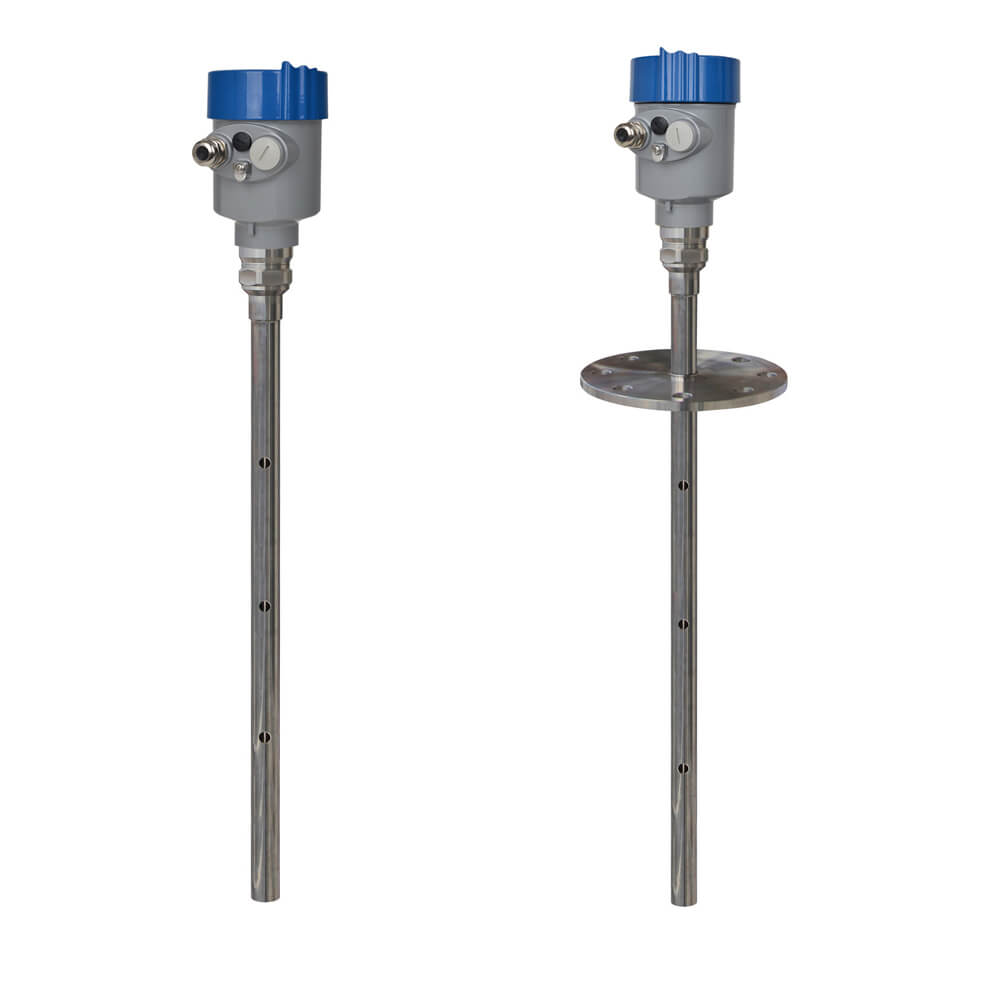

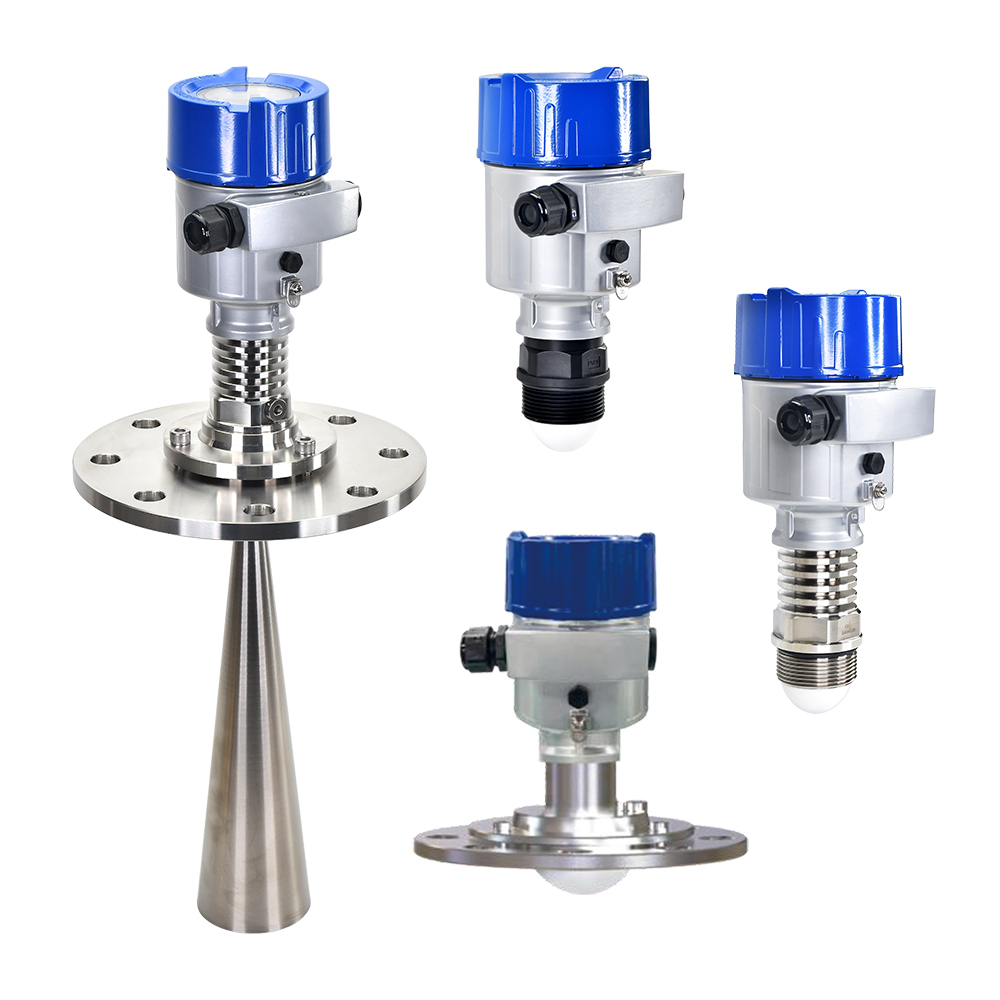

Name: FLP Radar Level Transmitter for solids
Brand: TRONSOFT TECHNOLOGIES
Price: 14998.0 INR
Availability: InStock

Price 14998.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

FLP Radar Level Transmitter for solids Specification

Efficiency
High measurement accuracy, up to 10 mm

Protection Level
Ex d IIC T6 Gb, IP67

Humidity
95% RH, Non-condensing

Rated Voltage
24 V DC

Output Voltage
4-20 mA/HART, Optional: RS485/Modbus

Input Current
<70 mA

Frequency
26 GHz (K-Band)

Operating Temperature
-40C to +120C (Special Version Up to +250C)

Mounting Type
Flange/Threaded - As per Application

Phase
Single Phase

Main Material
Aluminium alloy housing, SS Antenna

Processing Type
Industrial Automation Device

Condition
New

Function
Non-contact radar level measurement for solid materials

Application
Level measurement of bulk solids, powders, and granules in silos, bunkers, hoppers

Dimension (L*W*H)
Approx. 400 x 140 x 110 mm (Without Antenna)

Power Mode
Continuous

Voltage
24 V DC (Optional: 220 V AC with Converter)

Power Consumption
<1.5 W

Battery Life
Not Applicable (Mains Powered)

Accessories
Manual, Cable Gland, Mounting Flange

Display
Integrated LCD/LED Display with Menu

Vibration Resistance
Strong anti-vibration design

Calibration
User friendly on-site through display or remotely

Enclosure Material
Aluminium Alloy, Powder Coated

Explosion Proof Certification
Flameproof (FLP) - ATEX/IECEx approved body

Antenna Type
Horn or Parabolic (as per process condition)

Response Time
<1 Second

Beam Angle
8 (Typical)

Measuring Range
Up to 70 meters for solids

Ingress Protection
IP67 (Explosion Proof & Weather Resistant)

Connection Size
DN80/100, Optional as required

Cable Entry
2 x M20

Weight
Approx. 3.0 Kg (excluding mounting)

Process Pressure
-1 to 3 bar (vacuum to moderate pressure)

FLP Radar Level Transmitter for solids Trade Information

Minimum Order Quantity
1 Number

Supply Ability
100 Per Month

Delivery Time
7 Days

About FLP Radar Level Transmitter for solids

Jump on this limited time opportunity to own the FLP Radar Level Transmitter for solids, engineered for optimum performance and phenomenal measurement accuracy up to 10 mm. Personalise your setup with horn or parabolic antennas, ideal for industrial applications where explosion-proof reliability is paramount. Its integrated LCD/LED display ensures radiant clarity during calibration, on-site or remotely. With a robust aluminium alloy housing and strong vibration resistance, this device thrives even in harsh environments, delivering highly precise non-contact level measurement for bulk solids, powders, or granules.

Diverse Application Versatility for Challenging Environments

The FLP Radar Level Transmitter for solids shines in a wide range of industrial settings, making it suitable for surface level detection in silos, hoppers, bunkers, and storage containers. Its robust design is optimised for the accurate measurement of bulk solids, powders, and granules. Engineered for harsh conditions, it's perfect for use in grain elevators, cement plants, mining operations, and other process industries where precise non-contact level monitoring is critical.

Packaged Excellence: Efficient Logistics and Sample Support

Packing & dispatch of the FLP Radar Level Transmitter are managed with care, ensuring secure and intact delivery from our FOB port in India. We offer sample availability upon request to support evaluation and quotation processes. Every unit is meticulously packaged following industry best practices to prevent transit damage. Freight arrangements and detailed packaging ensure rapid, reliable shipment so your equipment arrives installation-ready and without compromise.

FAQ's of FLP Radar Level Transmitter for solids:

Q: How does the FLP Radar Level Transmitter operate for solid material measurement?

A: The transmitter utilises non-contact radar technology operating at 26 GHz (K-Band) to detect and measure the level of solid materials such as powders, granules, and bulk solids, providing accurate readings up to 70 meters.

Q: What benefits does the explosion-proof FLP certification offer for industrial users?

A: FLP (Flameproof) certification ensures the device can safely function in hazardous areas with flammable dust or gases, meeting ATEX and IECEx standards to protect personnel and equipment.

Q: Where can the FLP Radar Level Transmitter be practically installed?

A: It is suitable for bins, silos, hoppers, and bunkers used in industries like cement, mining, grain storage, and chemical plants-any application requiring high-precision level measurement for solids.

Q: What is the process for calibrating the FLP Radar Level Transmitter?

A: Calibration can be accomplished user-friendly, either through the integrated LCD/LED display by navigating the intuitive menu or remotely, ensuring adaptability and ease during installation and maintenance.

Q: When should you consider using a horn vs. a parabolic antenna?

A: Selection depends on process conditions-horn antennas are generally suitable for standard conditions, while parabolic antennas are used when handling challenging applications needing a narrower beam angle or longer ranges.

Q: How is the device packaged and shipped to customers?

A: Each transmitter is securely packed with accessories like a manual, cable gland, and mounting flange. Packing & dispatch follow strict protocols, with shipments dispatched from the designated FOB port in India and freight coordinated per customer requirements.
