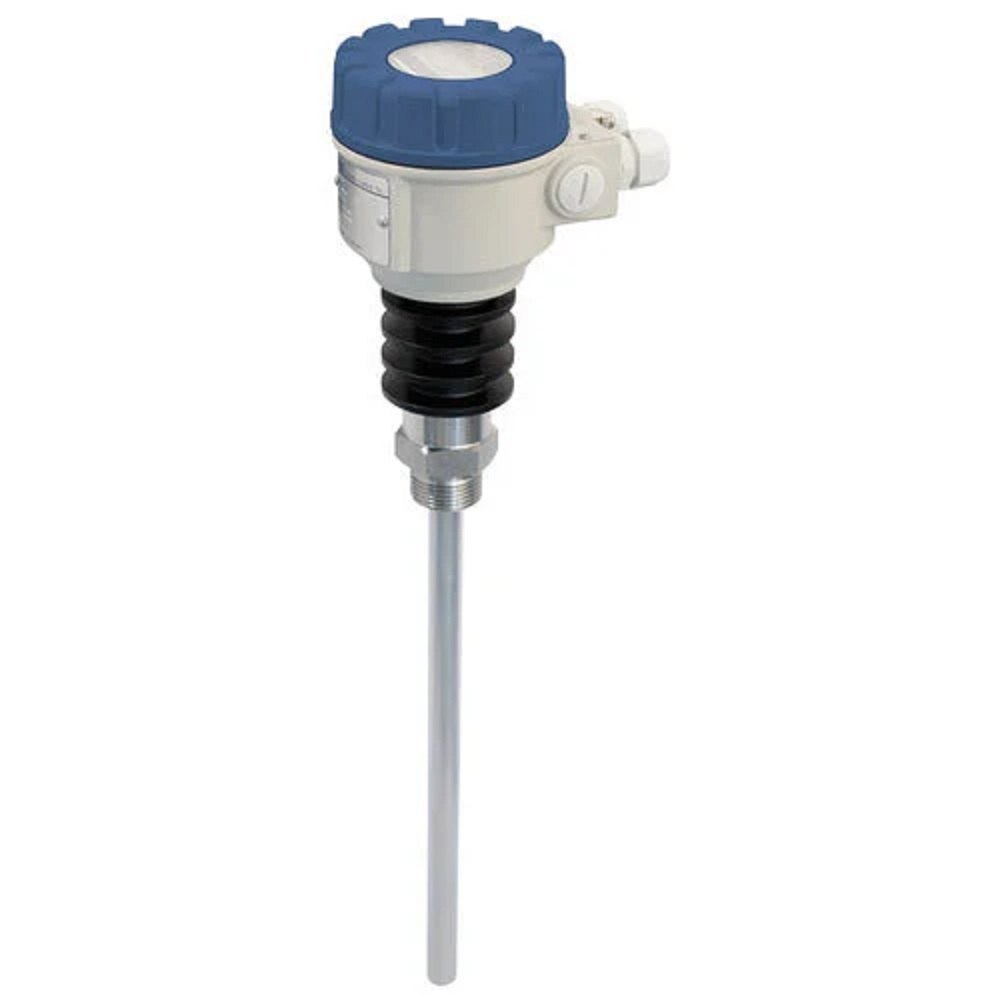

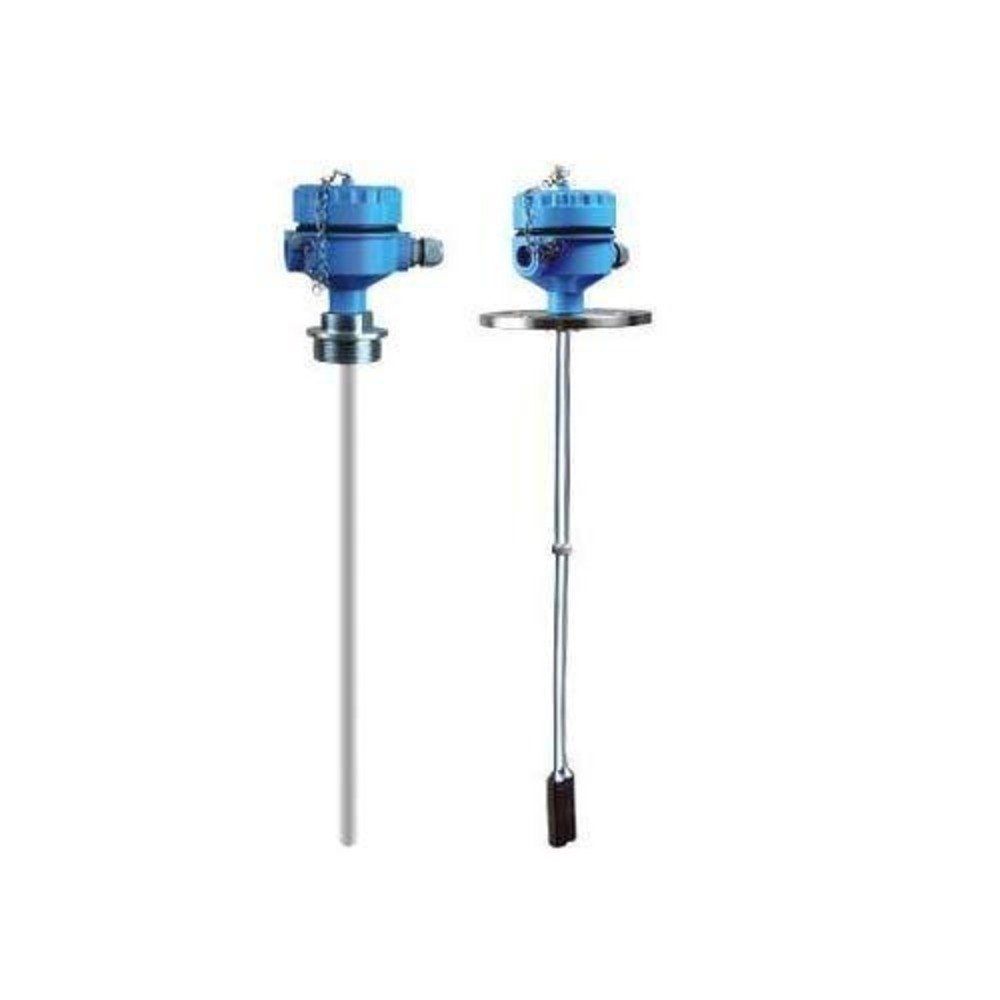

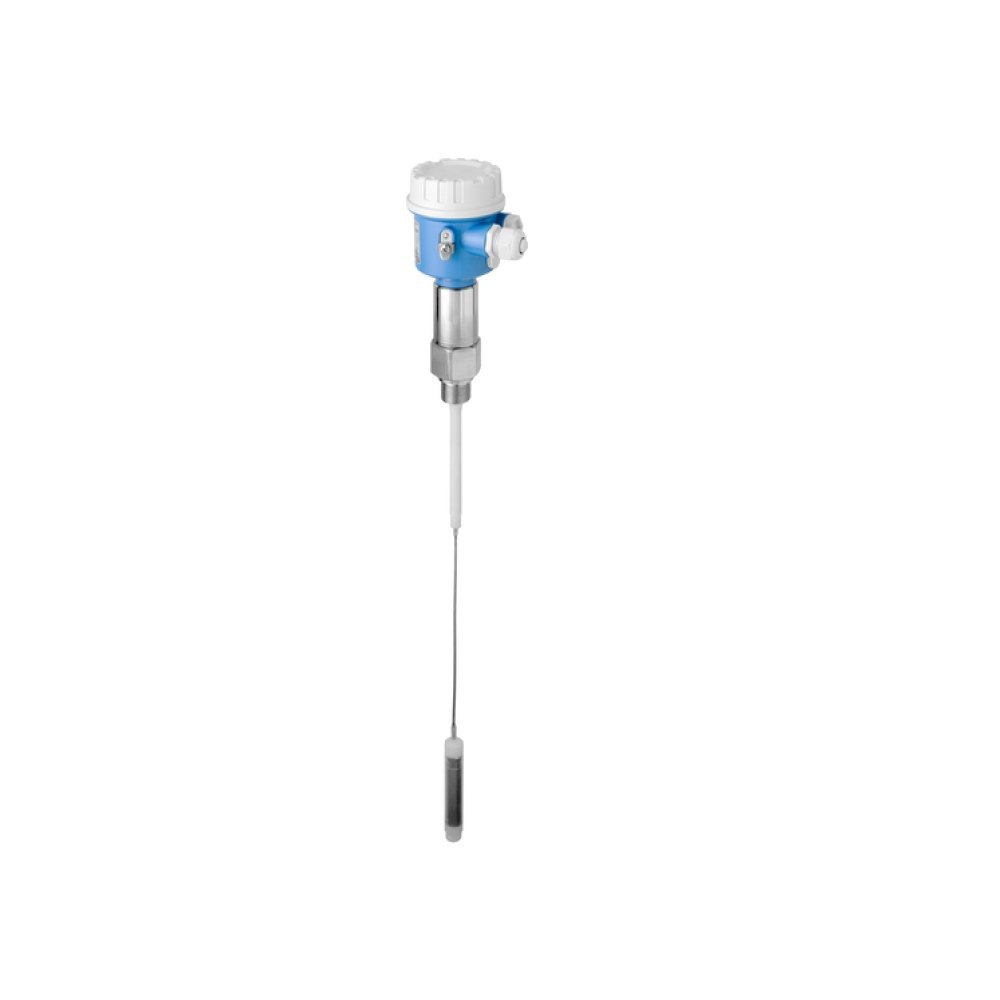

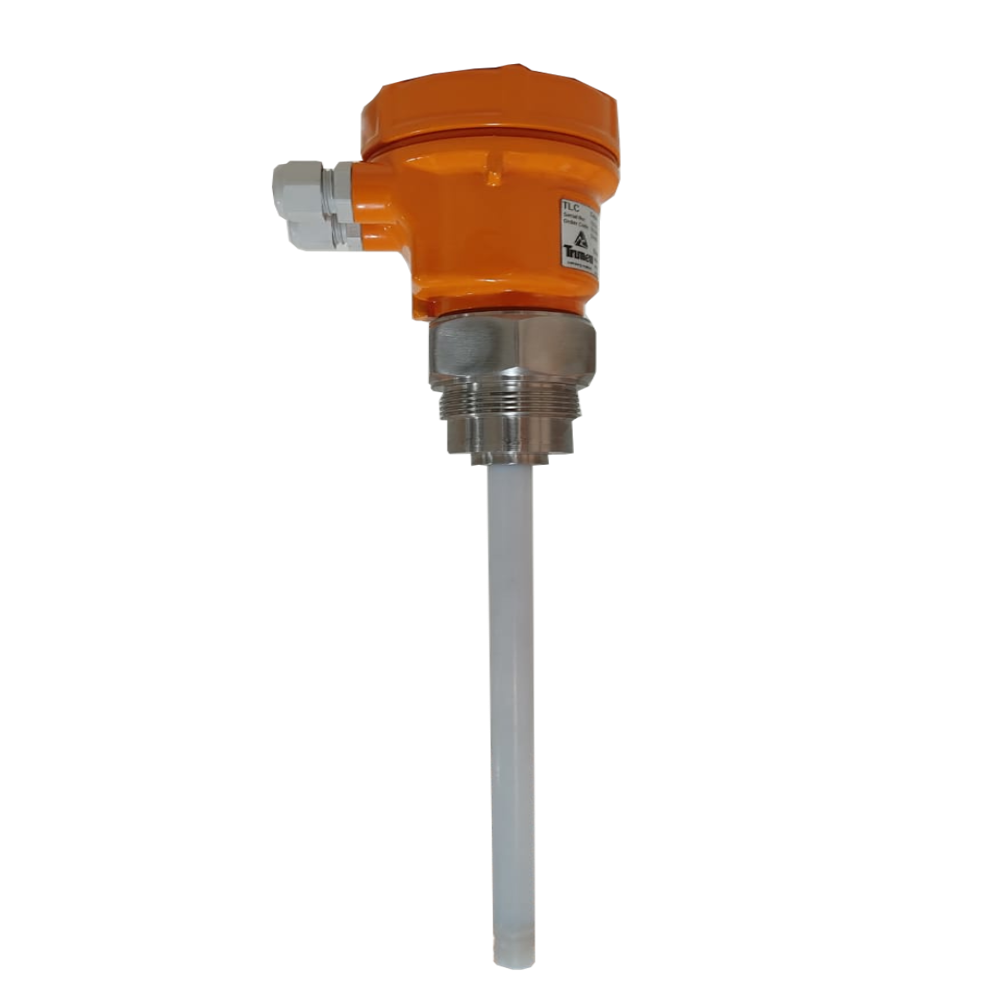

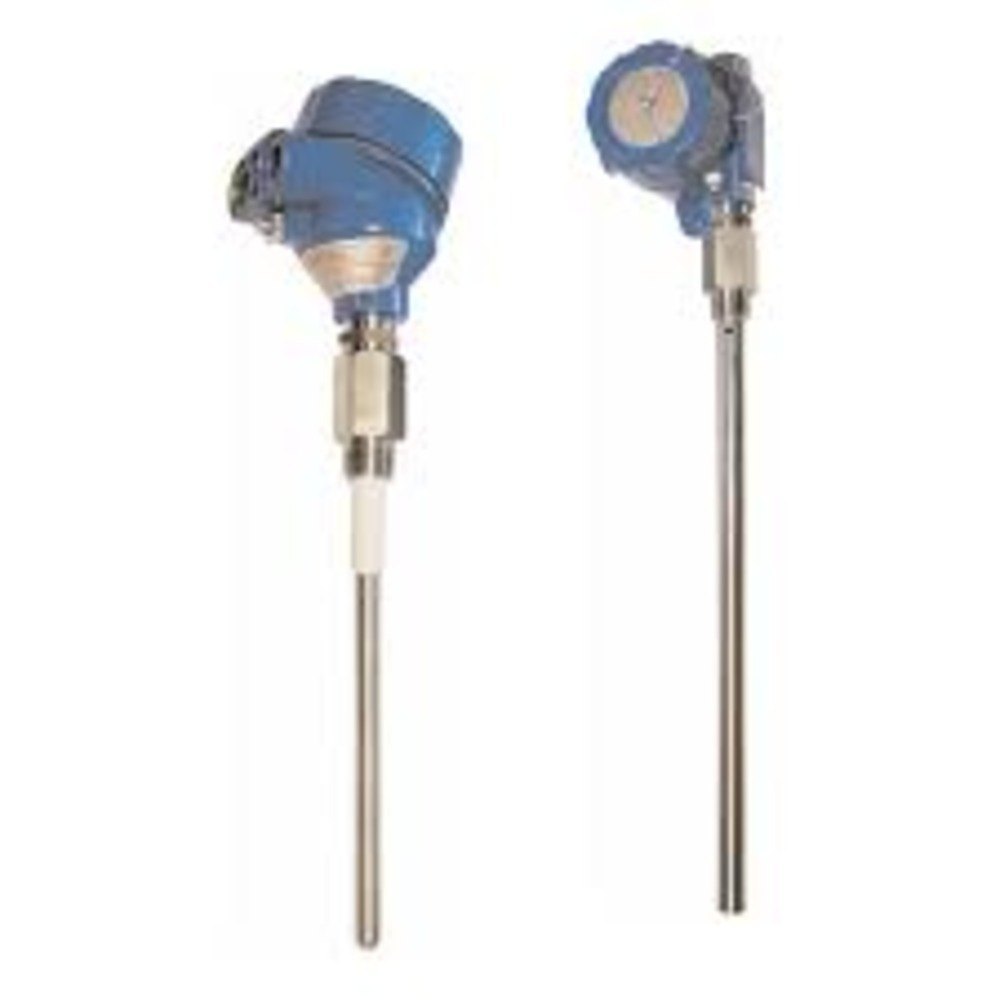

Capacitance Level Transmitter

Name: Capacitance Level Transmitter
Brand: TRONSOFT TECHNOLOGIES
Price: 10000.0 INR
Availability: InStock

Price 10000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Capacitance Level Transmitter Specification

Input Current
4-20 mA Output Loop

Humidity
Up to 95% RH, Non-condensing

Protection Level
IP65

Operating Temperature
-20C to +70C

Output Voltage
4-20 mA (Analog Signal)

Phase
Single

Efficiency
High Accuracy (<1% F.S.)

Rated Voltage
24 V DC

Mounting Type
Threaded, Flanged, or Customized

Frequency
50/60 Hz

Main Material
SS316 Probe, Aluminium Die Cast Enclosure

Processing Type
Industrial Grade

Condition
New

Function
Capacitance-based Level Sensing and Output

Application
Continuous Liquid Level Measurement in Tanks, Silos, Process Vessels

Dimension (L*W*H)
225mm x 90mm x 92mm (approx.)

Power Mode
Loop Powered (2-wire)

Voltage
24 V DC

Power Consumption
<2W

Accessories
Mounting Flange, Cable Gland, Instruction Manual

Cable Entry
PG11/PG13.5

Weight
Approx. 2.5 kg

Display
Optional Digital LCD Display

Process Connection
1.5" BSP/NPT (standard), others on request

Compliance
CE, RoHS Compliance

Probe Length
As per customer specification

Explosion Proof Version
Available on Request (Flameproof Enclosure)

Ingress Protection
IP65/IP66

Measuring Range
200 mm to 3 meters (standard), up to 10 meters optional

Calibration
On-site Push Button Calibration

Dead Zone
<50mm from Probe Bottom

Response Time
<1 second

Dielectric Constant Range
>1.5

Enclosure Material
Aluminium Powder Coated

Capacitance Level Transmitter Trade Information

Minimum Order Quantity
1 Number

Delivery Time
4 Week

About Capacitance Level Transmitter

Fast and Easy Installation Calibration method by pushbuttons. No maintenance issue. No effect of terbulance in the tank. High Reliability Suitable for the highly dusty environment.

Reliable and Flexible Level Measurement

Engineered for industrial-grade performance, this capacitance level transmitter provides dependable, high-precision measurements for a broad range of applications. Its rugged aluminium enclosure and SS316 probe ensure operational longevity even in harsh conditions. The transmitter supports a variety of installation methods, making it adaptable to different tank and vessel geometries.

Rapid Response and On-Site Calibration

Featuring a response time of less than 1 second and user-friendly push-button calibration, the unit streamlines setup and maintenance. Operators can easily tailor probe length and calibration directly on site, optimizing accuracy for ever-changing process needs while minimizing downtime.

Comprehensive Safety and Compliance

Designed with operator and facility safety in mind, this transmitter includes options for explosion-proof flameproof enclosures and meets rigorous CE and RoHS compliance standards. Its superior ingress protection (IP65/IP66) ensures reliable operation in demanding industrial environments.

FAQ's of Capacitance Level Transmitter:

Q: How does the capacitance level transmitter measure liquid levels in tanks or vessels?

A: The transmitter operates on the principle of capacitance change; as the liquid level rises or falls, the capacitance between the probe (SS316) and the tank wall varies. This change is processed and converted to an analog 4-20 mA output, indicating liquid level continuously and accurately.

Q: What are the installation requirements and process connections for this transmitter?

A: The standard process connection is 1.5" BSP/NPT, with other types available upon request. The transmitter supports both threaded and flanged mounting, allowing for versatile installation based on specific tank or vessel configurations.

Q: When should the on-site push button calibration be carried out?

A: Calibration should be performed during initial installation, after any major process changes, or when maintenance indicates accuracy drift. The push-button mechanism enables quick and straightforward calibration without dismantling the device or process downtime.

Q: Where can this level transmitter be effectively used?

A: It is ideal for use in tanks, silos, and process vessels across diverse industries such as water treatment, chemicals, food processing, and pharmaceuticals, ensuring reliable liquid level monitoring in both hazardous and non-hazardous environments.

Q: What are the benefits of the optional digital LCD display?

A: The digital LCD display provides clear, real-time visual feedback of the measured liquid level, simplifying local monitoring and troubleshooting. It enhances operational efficiency and ensures quick response to level changes.

Q: How does the explosion-proof (flameproof) enclosure enhance safety?

A: The explosion-proof enclosure, available upon request, is designed to contain any internal sparks or ignition sources, preventing them from igniting flammable gases or vapors in hazardous areas, thereby protecting personnel and equipment.
