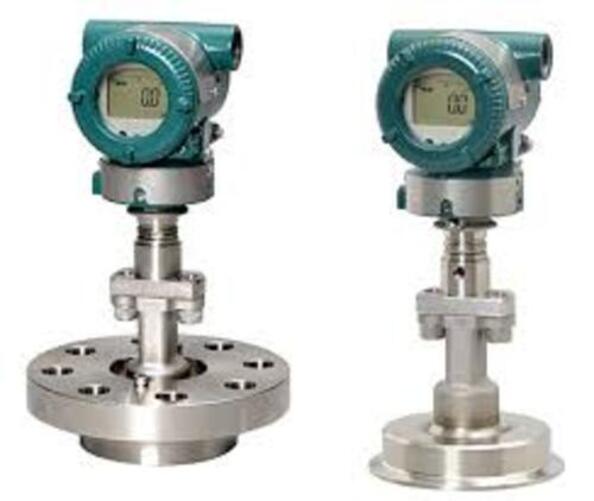

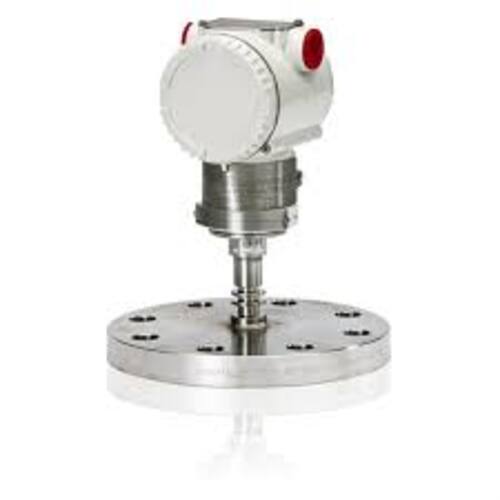

Diaphragm Seal Pressure Transmitter

Name: Diaphragm Seal Pressure Transmitter
Brand: TRONSOFT TECHNOLOGIES
Price: 25000.0 INR
Availability: InStock

Price 25000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

Diaphragm Seal Pressure Transmitter Specification

Frequency
50/60 Hertz (HZ)

Output Voltage
24 Volt (V)

Operating Temperature
-20 C to +85 Celsius (oC)

Input Current
4 20 mA

Protection Level
IP65 / IP67

Rated Voltage
24 Volt (V)

Mounting Type
Direct / Remote Mounting

Humidity
Up to 95% RH

Efficiency
High Accuracy and Stability

Usage
Pressure Measurement in Liquids, Gases, Steam, Slurries and Corrosive Media

Processing Type
Standard

Condition
New

Function
Pressure Sensing and Transmission

Application
Pressure Measurement of Corrosive, Viscous, High-Temperature Fluids

Product Type
Piezoresistive / Capacitive Sensor

Power Mode
Electric

Power Consumption
Less than 1 Watt (W)

Accessories
Mounting Bracket, Manifold, User Manual, Calibration Certificate

Warranty
1 year

Diaphragm Seal Pressure Transmitter Trade Information

Minimum Order Quantity
1 Number

Supply Ability
2 Per Month

Delivery Time
3 Week

Sample Available
No

Certifications
Atex

About Diaphragm Seal Pressure Transmitter

The Diaphragm Seal Pressure Transmitter is designed for measuring pressure in challenging applications involving corrosive, viscous, crystallizing, or high-temperature process media. The diaphragm seal isolates the sensing element from the process fluid, ensuring reliable and accurate pressure measurement while extending transmitter life. The transmitter provides a standard 4-20 mA output with optional HART communication for integration with PLC, DCS, and SCADA systems. It is widely used in chemical processing, pharmaceuticals, food industries, water treatment plants, and oil & gas installations.

Precise Pressure Monitoring Across Applications

This diaphragm seal pressure transmitter provides accuracy and stability in pressure measurement for a variety of fluids, including corrosive, viscous, and high-temperature media. Its robust design makes it suitable for processing industries, ensuring consistent performance whether installed directly or remotely, in challenging environments.

Energy Efficient Performance with Robust Protection

Designed for minimal power consumption (less than 1 watt) and optimal operation at 24V, the transmitter operates efficiently even at high humidity levels and within a wide temperature range. Its IP65/IP67 protection guarantees reliable functioning in harsh industrial settings, enhancing the device's longevity.

FAQ's of Diaphragm Seal Pressure Transmitter:

Q: How does the diaphragm seal pressure transmitter maintain high accuracy and stability in challenging environments?

A: The transmitter incorporates a diaphragm seal that isolates the sensing elements from aggressive process media, reducing direct contact that could affect measurements. It utilizes advanced electronics to deliver stable and precise readings even under fluctuating pressure, temperature, and humidity conditions.

Q: What types of media can be measured with this pressure transmitter?

A: This device is suitable for measuring pressure in various media, including liquids, gases, steam, slurries, and especially corrosive or viscous fluids. Its durable construction is ideal for high-temperature and harsh chemical environments.

Q: When is it recommended to use a direct versus remote mounting configuration?

A: Direct mounting is ideal when accessibility and process temperature allow, minimizing installation complexity. Remote mounting is advised for high-temperature or vibration-prone applications, or where space constraints require separation from the process line.

Q: Where can this diaphragm seal pressure transmitter be applied in industrial processes?

A: The transmitter is suitable for use in chemical plants, refineries, pharmaceuticals, food processing, and other industries where precise pressure measurement of aggressive or hazardous fluids is critical for process control and safety.

Q: What benefits does the IP65/IP67 protection level provide?

A: IP65/IP67 protection ensures the transmitter is dust-tight and safeguarded against water ingress, allowing for reliable performance in wet, humid, or corrosive environments, and reducing maintenance frequency.

Q: How is the transmitter powered and what is its typical power consumption?

A: It operates on a 24V power supply with a low power consumption of less than 1 watt, making it efficient for continuous industrial usage while minimizing energy costs.
